Description

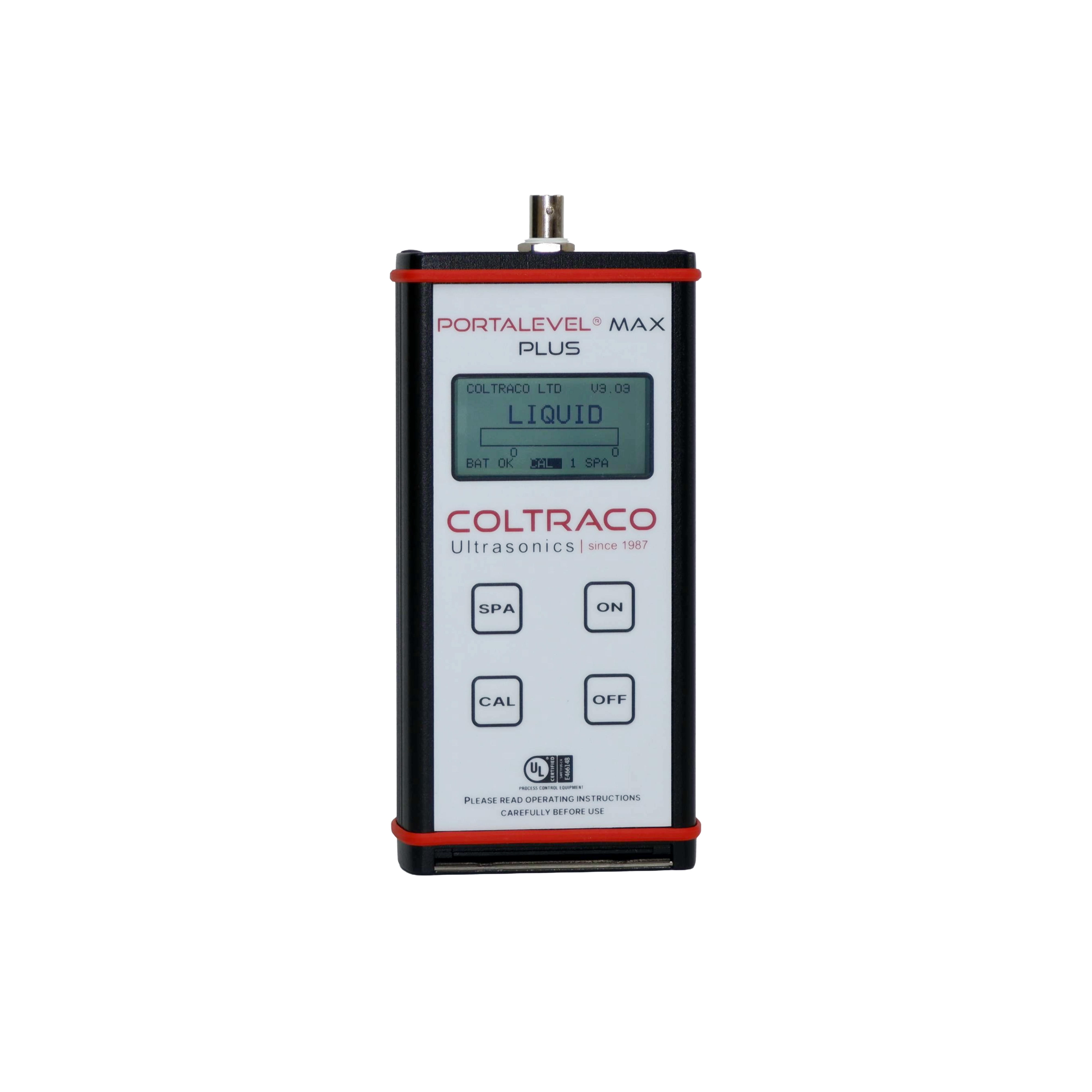

Coltraco’s Portalevel® MAX PLUS is our high-spec UL listed addition to our line of handheld, battery powered liquid level indicators. With the Portalevel® MAX PLUS, an operator can rapidly and reliably detect the liquid level within a fire cylinder, with clear GAS / LIQUID interface, with an accuracy of ±1.5mm in under 30 seconds.
Type: Portable Ultrasonic Liquid Level Indicator
Function: Non-invasive liquid level detection of various fire suppression agent, such as; CO2, FM200™, NOVEC™ 1230, old Halon agents, FE-13™, FE-25™, NAF S III™ and all core Clean Agent systems.
Part Number: 2290334-COMXPS
Approvals: UL Listed, RINA Accepted, ABS Type Approval.
IMPA P/N: 652776
Standards: UKCA, CE, Coltraco is ISO 9001 and ISO 14001 approved
Included Items
- Portalevel® MAX PLUS
- Handheld Ultrasonic Sensor
- Ultrasonic Couplant
- Infrared Thermometer
- Operating Instructions
- Calibration Certificate
- Robust Carrying Case
Features and benefits
- Portable Portable hand-held device designed to be used by 1 person
- Minimise risk No heavy lifting or accidental discharges when weighing
- Improve asset safety Keep cylinders in-situ and fire suppression system on
- Three Calibration Modes For accuracy on a wide range of agents and cylinders of varying size/type and condition
- Faster Measurement 5-25 seconds compared to 15 minutes by weighing
- Intuitive Display/Operation Display for use with minimal training
- Reliable Accurate to +/-1.5mm of the true liquid level
- Regulation Compliant UL Listed, RINA Accepted, ABS Type Approved
Product Brochure – Portalevel MAX PLUS – 2025-09-12
English
Romanian
