Description
The Portalevel® LITE is a portable, non-invasive ultrasonic liquid level indicator designed for measuring the content of fire suppression agents in seamless or welded single-skin cylinders. A novel sensor directs ultrasound around the circumference of the cylinder which, paired with a “peak tracking” algorithm, ensures the correct ultrasound signal is measured each time. This results in accurate measurements to ±1mm of the true liquid level for cylinder diameters ranging from 110mm to 406mm. A clear GAS/LIQUID indication reduces uncertainty and simplifies the operator’s ability to differentiate between gas and liquid, improving accuracy during inspections. The two-point calibration procedure enables a measurement to be taken in under 30 seconds, significantly reducing downtime compared to traditional methods such as weighing.
Type: Portable Ultrasonic Liquid Level Indicator
Function: Non-invasive liquid level detection of various marine fire suppression agents, such as; CO2, FM200™, NOVEC™ 1230, old Halon agents, FE-13™, FE-25™, NAF S III™ and all core Clean Agent systems.
Part Number: 2290334-LITE
Approvals: RINA Accepted
IMPA P/N: 652776
Standards: UKCA, CE, Coltraco is ISO 9001 and ISO 14001 approved

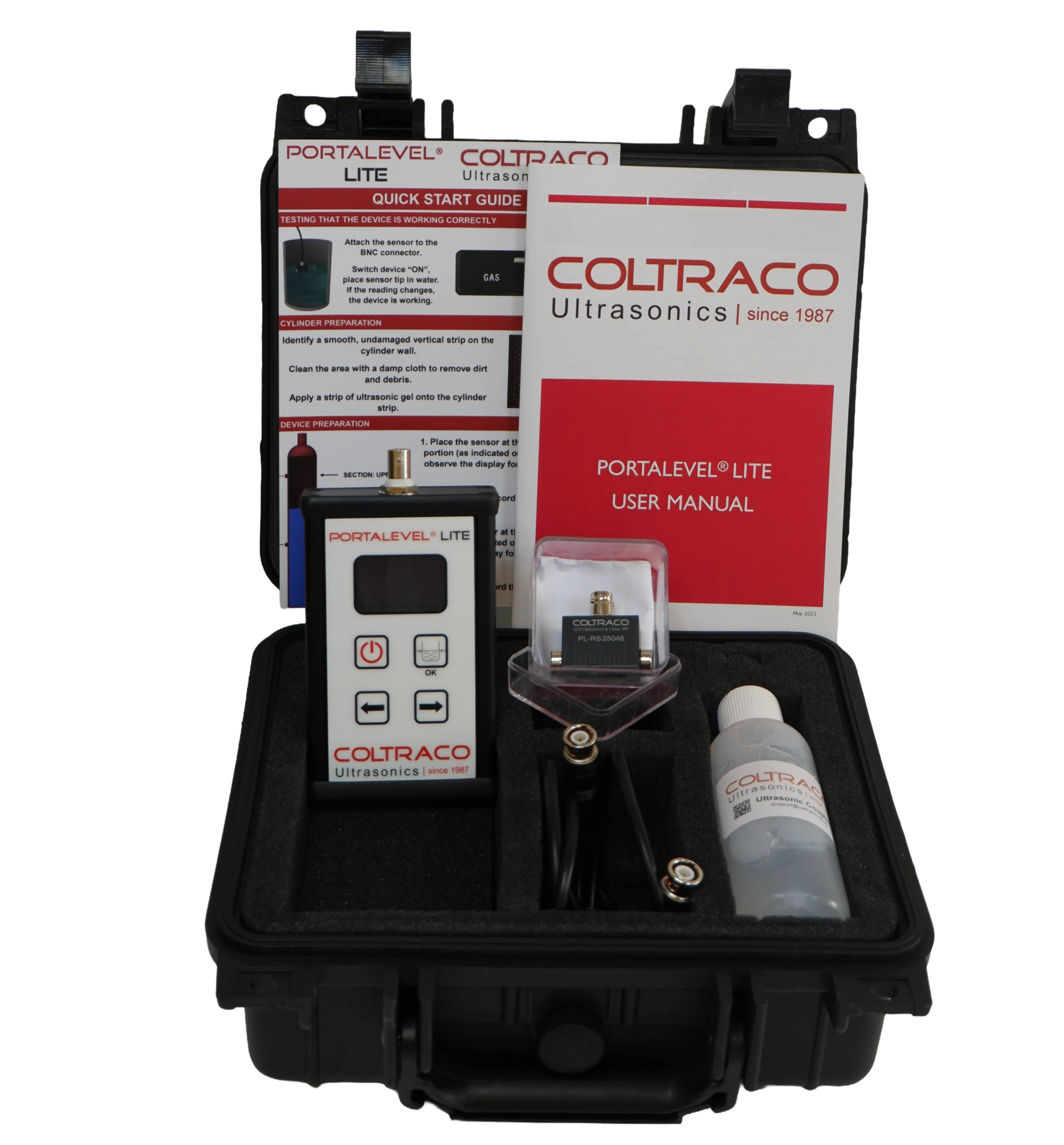

Included Items
- Portalevel® LITE Main Unit
- Handheld Ultrasonic Sensor
- Infrared Thermometer
- 2x Water-based Ultrasonic Couplant Gel
- User Manual
- Calibration Certificate
- Robust Carrying Case
Features and benefits
- Optimised Rectangular Sensor Enhanced design directs ultrasound more effectively, improving accuracy and measurement efficiency.
- Faster Testing Simplified 6-step procedure for quicker operation, reducing testing time.
- Extended Battery Life 24 hours of continuous use.
- Accurate detection Provides visual feedback of the ultrasound signal, increasing confidence in measurements.
- Advanced Signal Processing New algorithms provide clearer differentiation between gas and liquid phases, ensuring precise results.
