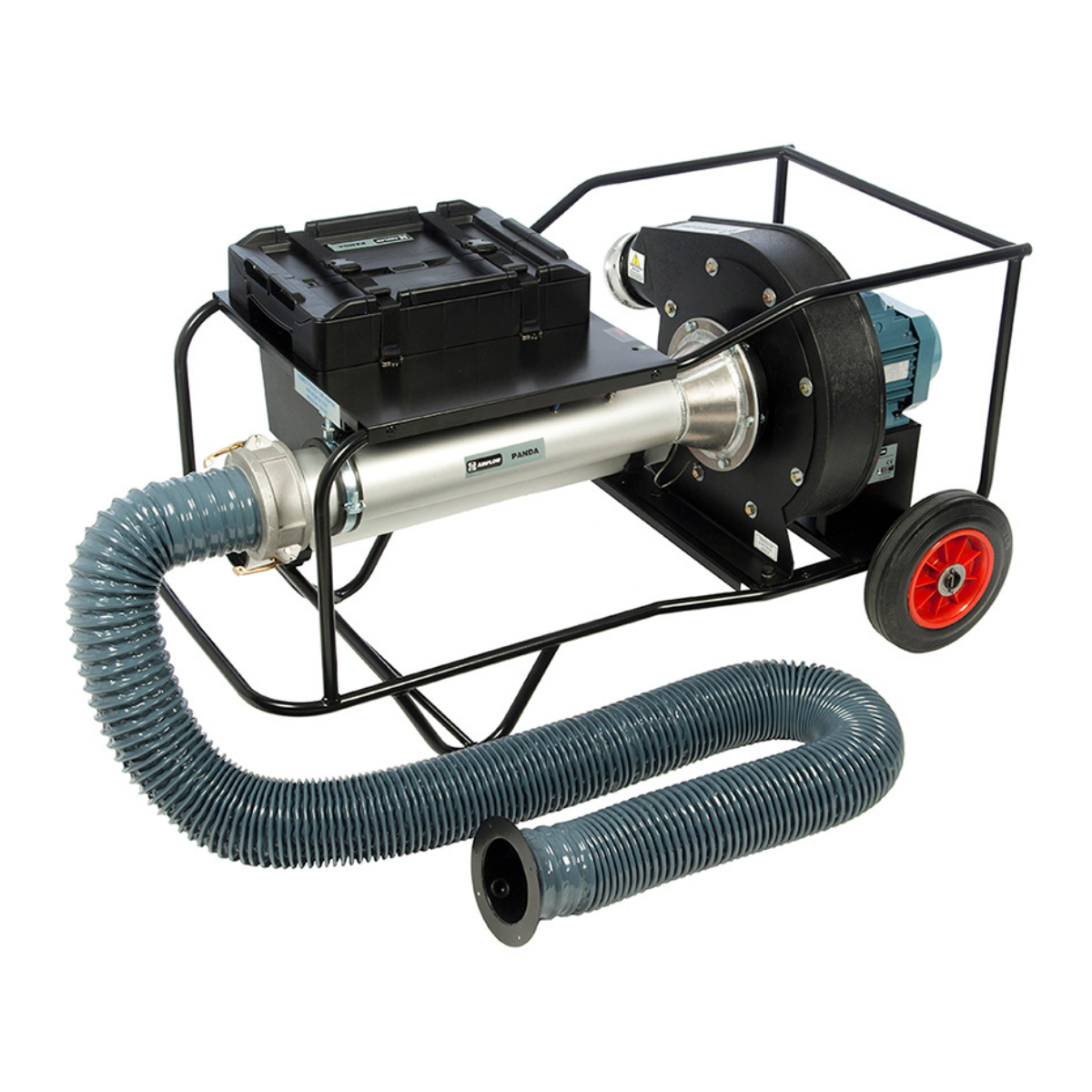

Name: Airflow Instruments Positive and Negative Duct Accreditation System PAN341
SKU: PAN341
Availability: BackOrder

Description

The PANDA provides a fast, accurate, automated solution and helps to ensure compliance with European standards like EN12237, EN1507, EN13779, EUROVENT 2/2 standards and with American standards like SMACNA, enhancing energy savings in buildings.

Features and benefits

Positive and Negative Duct Leakage Testing in one rig
Energy savings by testing and minimizing duct leaks
Compliant with the following standards:
- EN13779 Ventilation for Buildings—Achieve a good air quality with acceptable installation and running costs
- EN12237 Ventilation for Buildings—Ductwork strength and leakage of circular sheet metal ducts
- EN12237 Ventilation for Buildings—Test procedures with measuring methods
- HVCA DW/143 Ventilation for Buildings—Guidance document for ductwork leakage testing
- EUROVENT 2/2 Air Leakage Rate in Sheet Metal Air Distribution Systems
- SMACNA Sheet Metal And Air Conditioning Contractors National Association
Accuracy is ± 2,5% of volume flow
Unique performance and fan speed control charge up of duct system to test static pressure within minutes
Fits in the back of vans and estate cars
Model PAN341 comes with standard Airflow TA465-P Multi-Function Instrument and PVM610 Micromanometer.
Automatically calculates leakage rate in real time
Simultaneous displays flow leakage rate and static pressure
- Provides a pass/fail indication for a given tightness class
- Automatically corrects actual volume flow leakage rate to Standard Temperature and Pressure (STP)
- Monitors barometric pressure and temperature in real time
- Stores data that can be downloaded for report generation and documentation
- Works with Model 8934 Portable Printer
Carry weight of 45 kg (99 lbs)
